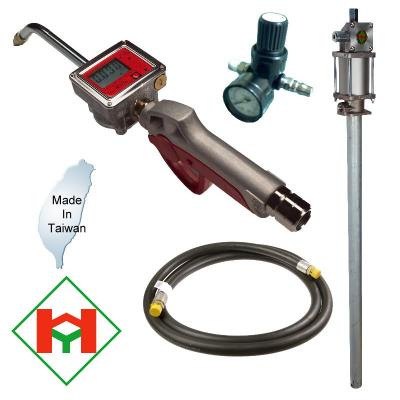

THY Pneumatic Oil Pump

Product Name : Pneumatic Oil Pump
Synonyms : Air operated oil pump, Air operated lube pump, Air operated oil transfer pump.

Model : P5200-6
Brand : 【THY】【56888】 since 1996

Specifications :
◎ Compression ratio : 5 : 1 (for delivery of medium viscosity & medium distance delivery)
◎ Max oil speed : 16 L / min (pump outlet)
◎ Suction pipe diameter : 44 mm
◎ Suction tube length : 985 mm
◎ Working temperature : -10 ~ 50 ℃
◎ Working pressure : 90 ~ 110 PSI
◎ Output pressure : 450 ~ 550 PSI
◎ Hose size : 3/8", one layer of steel-rubber tube, 6m
◎ Scope : 50 gallons lubricant drum, 200 liters lubricant drum. Any lubricant such as engine oil, gear oil, automatic transmission oil , hydraulic oil, antifreeze , all kinds of lubricants.
Special Design :
◎ Oil and gas separation : Oil will not be contaminated by moisture of compressed air.
◎ Easy maintenance: Maintenance pump control room as long as open the four screws.
◎ Airtight metal : Use metal replace of rubber. No gap is between the two metals which replace rubber to seal gap. That can increase the service life because metal more wear-resistant than rubber.

Flow Meter Specifications :
◎ Display range : 0.001 ~ 9999 L
◎ Power specifications : single AA battery
◎ Special design : low battery indicator , spill-resistant , display speed (L / min)
◎ The min unit of calibration mode is 0.001 CC.

Oil Gun Specification :
◎ Trigger Buck Design. You can press the trigger with a finger. (some others need four fingers.)
◎ Trigger Fixed Button. You can continue supplying oil for trigger fixed with a hand. (some others need both hands.)
◎ Automatic No-Drip Design. It can automatic make oil no drip after using. (some others is Manual No-Drip Design, some others no have it.)
◎ Surface polished, that make the oil gun prettier.
◎ Rotary joint, it can be rotated and the tubing isn't knotted.
◎ Material of control valve is copper that can make oil gun's life longer than iron's.
◎ There are five colors of shell, it's easy to identify oil when the different oil with different gun's color.

Product Description
We are involved in offering a wide range of Industrial Air Operated 5:1 Oil Pumps to our valuable clients. These pumps are manufactured using the optimum grade raw materials and cutting edge technology under the supervision of our skilled professionals. Furthermore, the product offered by us is tested by our quality controllers to ensure the defect free delivery to our clients. In addition to this, the prestigious clients can avail this range from us at the most leading price.
These pumps are perfectly suited to be installed directly into an oil drum as well as larger oil tanks (for customers dispensing larger volumes of oil). We also offer various air operated oil pump kits for various uses.
Pumps are designed to work in tough conditions & are ideal for use with high viscosity oils (SAE 240) for transferring over short & long distances mostly used with Trolley mounted kits both with & without Hose Reels, as well as with fixed systems for centralized distribution. All metal construction, fully CNC machined with hardened wear resistant moving parts. Air Motor. Pumps are supplied with Non Return Valve on the bottom of the Suction Tube.

Rust resistance
Robust construction
High durability

Products Details:
Heavy Duty Industrial 5:1 ratio pump for dispensing Oils at 5 times the pressure as the Air Inlet.
Solid Metal Aluminium Construction.
Ideal for single dispensing oils through multiple hose reels & metered gun systems found in large workshops utilizing bulk tanks.
We have assorted Inspection Tools, Greasing Equipment and Oiling Equipment used widely in conducting industrial tasks. These products are designed & developed as per the industry set standard in our workplace and are delivered to customers, imparted with capabilities of low maintenance, easy installation as well as efficient performance.

Manufacturer. Made In Taiwan, Quality Assurance, Factory Direct. We are looking for worldwide distributors. Please contact us.
