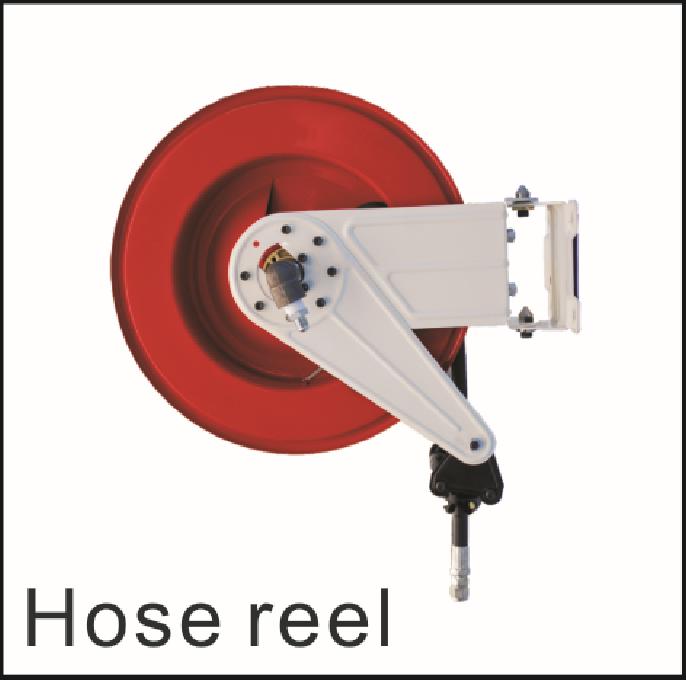

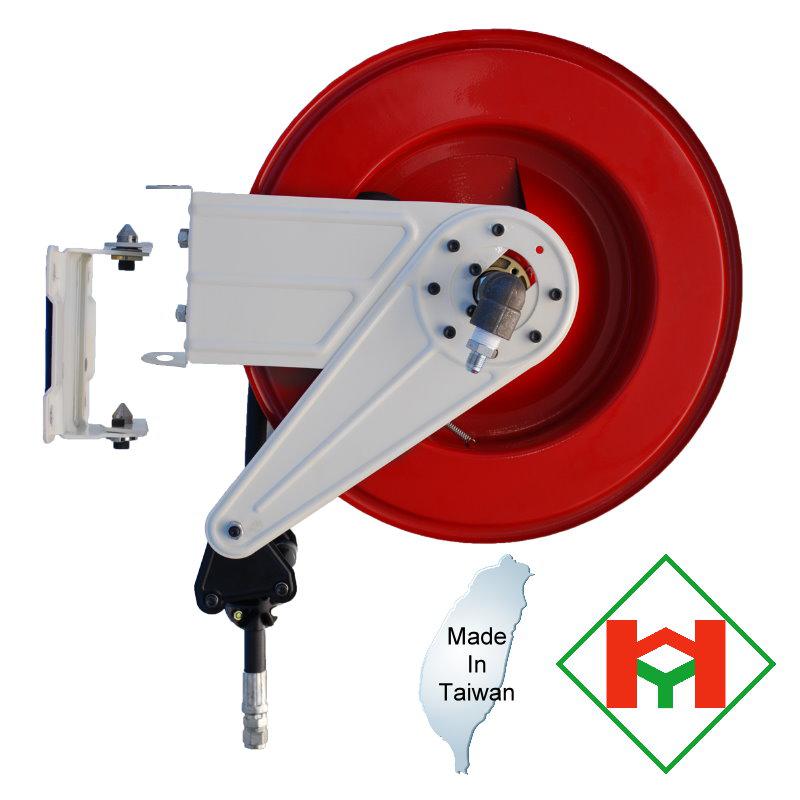

THY Auto hose reel

Product Name: Auto hose reel
Synonyms : Hose reel, Grease hose reel, Oil hose reel, Automatic hose reel, Spring hose reel.

Brand : 【THY】【56888】 since 1996

Common Specifications :
◎ Main Material : Iron
◎ Packaging volume : 530 X 500 X 220 mm
◎ Enhanced design : Internal spring is widened thickened that can increase the service life.
◎ Special design : It's easy installation for the reel holder is detachable.

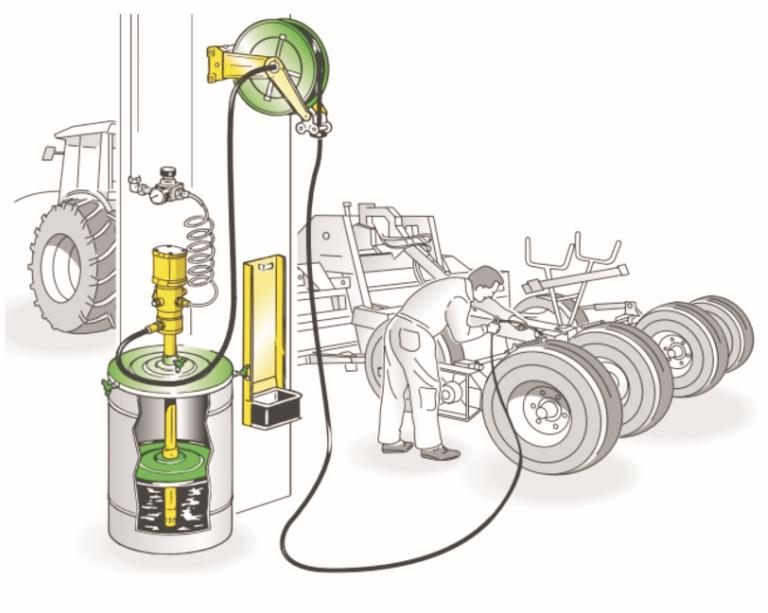

◎ Scope : Pressure Washing, Lawn Care, Industrial Cleaning, Chemical Spraying, UTV Sprayers, Pest Control, Spray Trucks, Agriculture, Skid Systems, Many More Uses.

Model : H333
◎ Import and export drive : 1/2" PT
◎ Internal spring : Thickness 1.2mm & width 33mm
◎ Tubing size : No tubing, install by yourself, max length should is 15 m.

Model : F350
◎ Scope : Oil, Air, Gear oil, Lubricating oil
◎ Maximum pressure : 2500 PSI (suitable for low pressure)
◎ Package weight : 20.874 kg
◎ Internal spring : Thickness 1.0mm & width 33mm

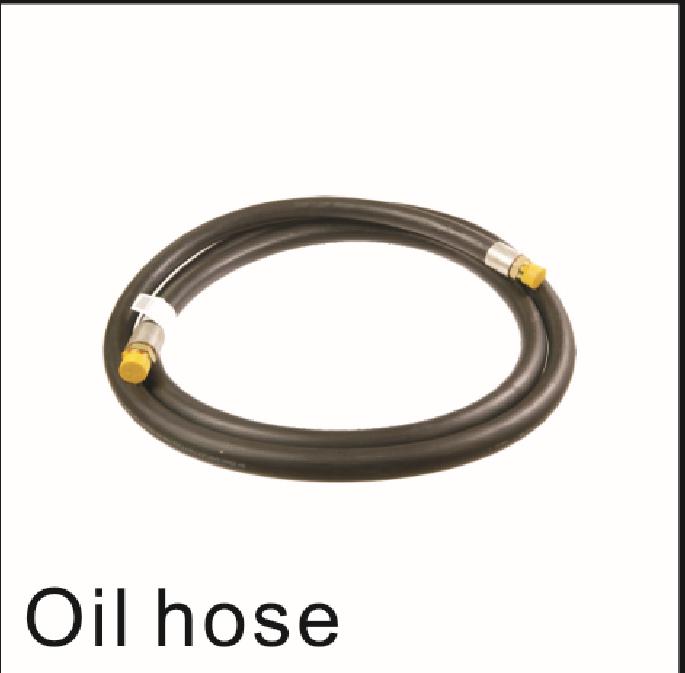

◎ Hose size : 3/8" one layer of steel-rubber tube, 15 m

Model : G350
◎ Scope : Butter, Grease
◎ Maximum pressure : 7000 PSI (suitable for high pressure)
◎ Package weight : 22.031 kg
◎ Internal spring : Thickness 1.2mm & width 33mm
◎ Hose size : 1/4" two layer of steel-rubber tube, 15 m

Made In Taiwan, Quality Assurance, Factory Direct. We are looking for worldwide distributors. Please contact us.

Manufacturer. Made In Taiwan, Quality Assurance, Factory Direct. We are looking for worldwide distributors. Please contact us.

【THY】 【56888】since 1996
Tong Hung Yeh Ent. Co., Ltd.
Web: www.56888.com.tw
Mail: THYsales99@gmail.com
Rm. 318, 3F., No.5, Wuquan 1st Rd., Xinzhuang Dist., New Taipei City 248, Taiwan (R.O.C.)
