THY Air operated oil pump

Product Name : Air operated oil pump
Synonyms : Air operated lube pump, Air operated oil transfer pump, Pneumatic oil pump.

Model : P5200, P550, P5000
Brand : 【THY】【56888】 since 1996

Specifications :
◎ Compression ratio : 5 : 1 (for delivery of medium viscosity & medium distance delivery)
◎ Max oil speed : 16 L / min (pump outlet)
◎ Air inlet diameter : 1/4" PT
◎ Oil outlet diameter : 1/2" PT
◎ Suction pipe diameter : 44 mm
◎ Working temperature : -10 ~ 50 ℃
◎ Working pressure : 90 ~ 110 PSI
◎ Output pressure : 450 ~ 550 PSI
◎ Scope : 50 gallons lubricant drum, 200 liters lubricant drum. Any lubricant such as engine oil, gear oil, automatic transmission oil , hydraulic oil, antifreeze , all kinds of lubricants.
Special Design :
◎ Oil and gas separation : Oil will not be contaminated by moisture of compressed air.
◎ Easy maintenance: Maintenance pump control room as long as open the four screws.
◎ Airtight metal : Use metal replace of rubber. No gap is between the two metals which replace rubber to seal gap. That can increase the service life because metal more wear-resistant than rubber.

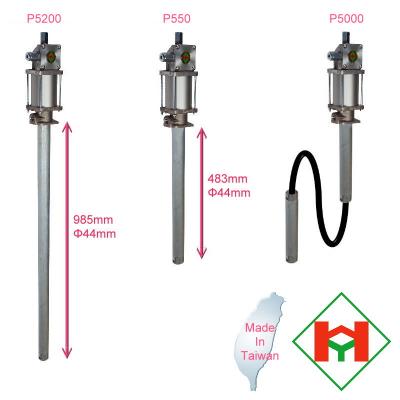

Pump Model : P5200
◎ Weight : 7236 g
◎ Suction tube length : 985 mm
◎ Applicable drums : 50 gallons , 200 liters

Pump Model : P550
◎ Weight : 5285 g
◎ Suction tube length : 483 mm
◎ Applicable drums : 5 gallons , 20 liters

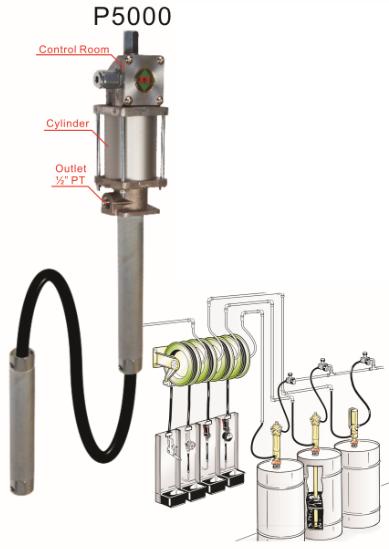

Pump Model : P5000
◎ Weight : 7849 g (that will increase in accordance with the hose length)
◎ Suction tube length : 493 + 511 mm
◎ Applicable drums : a large tank , special circumstances
◎ Hose distance: vertical distance is less than 6 m, horizontal distance is less than 20 m

Product Description :
We are involved in offering a wide range of Industrial Air Operated 5:1 Oil Pumps to our valuable clients. These pumps are manufactured using the optimum grade raw materials and cutting edge technology under the supervision of our skilled professionals. Furthermore, the product offered by us is tested by our quality controllers to ensure the defect free delivery to our clients. In addition to this, the prestigious clients can avail this range from us at the most leading price. These pumps are perfectly suited to be installed directly into an oil drum as well as larger oil tanks (for customers dispensing larger volumes of oil). We also offer various air operated oil pump kits for various uses. Pumps are designed to work in tough conditions & are ideal for use with high viscosity oils (SAE 240) for transferring over short & long distances mostly used with Trolley mounted kits both with & without Hose Reels, as well as with fixed systems for centralized distribution. All metal construction, fully CNC machined with hardened wear resistant moving parts. Air Motor. Pumps are supplied with Non Return Valve on the bottom of the Suction Tube. There is no risk of electric shock when using the pneumatic oil pump. Pneumatic oil pump is a safe and reliable scheme. We always tell our customers that safety comes first. The workshop needs to prevent electric shock. So we suggest using pneumatic oil pump. Heavy Duty Industrial 5:1 ratio pump for dispensing Oils at 5 times the pressure as the Air Inlet. Solid Metal Aluminium Construction. Ideal for single dispensing oils through multiple hose reels & metered gun systems found in large workshops utilizing bulk tanks. We have assorted Inspection Tools, Greasing Equipment and Oiling Equipment used widely in conducting industrial tasks. These products are designed & developed as per the industry set standard in our workplace and are delivered to customers, imparted with capabilities of low maintenance, easy installation as well as efficient performance.

Manufacturer. Made In Taiwan, Quality Assurance, Factory Direct. We are looking for worldwide distributors. Please contact us.
